Posted in Recent Projects

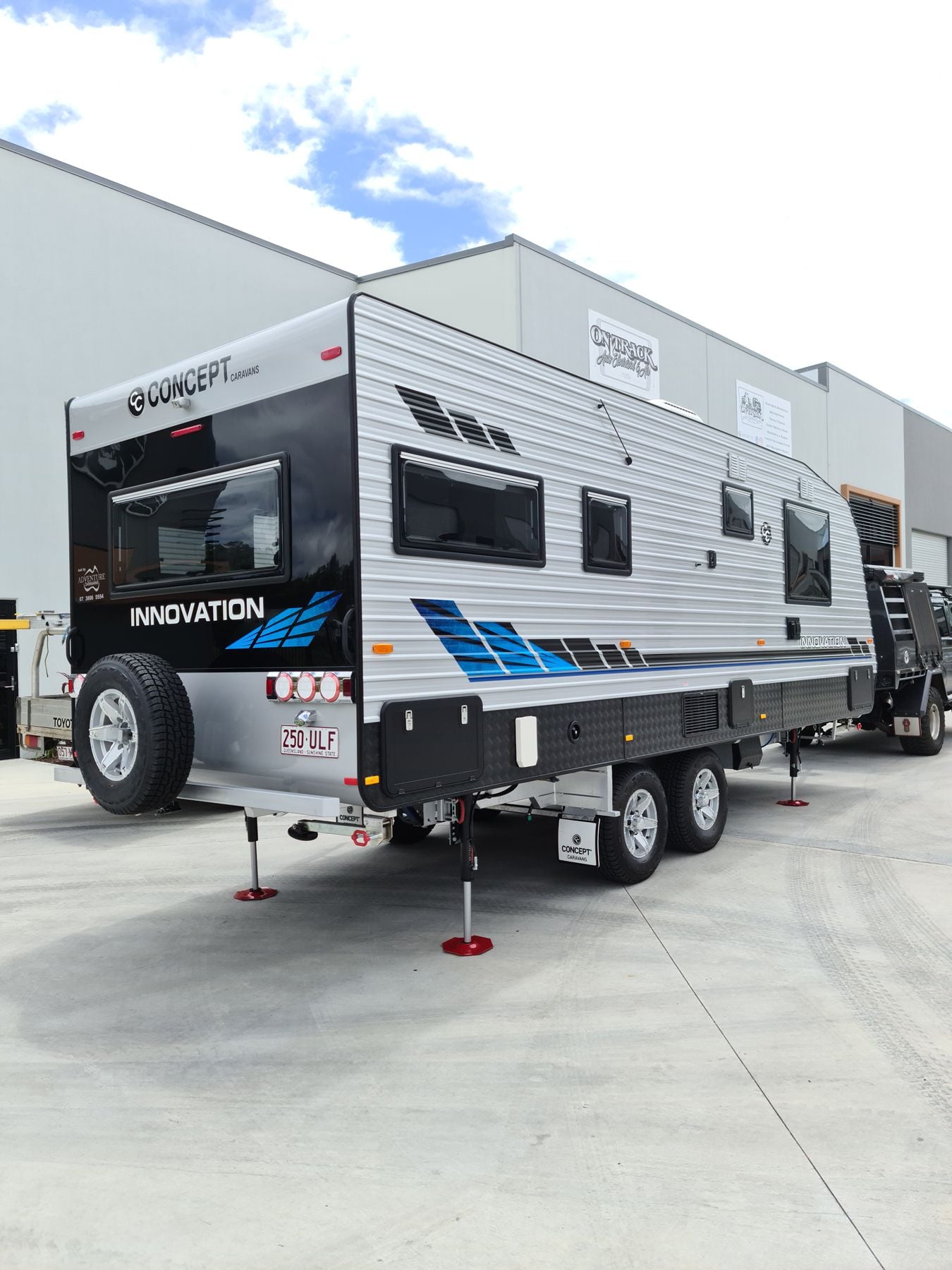

Aarons caravan automatic hydraulic levelling system
 "Aarons caravan automatic hydraulic levelling system")
Vehicle
Concept Innovation 670 caravan
Goal
Automatically level the caravan with the press of a button
Timeframe
2 weeks
Modifications
- Redfoot Elite electric over hydraulic auto levelling kit
Description of work completed
Aaron approached us with the task of making his caravan capable of levelling itself at the push of a button. Redfoot are one of the only companies with a system like this available. Unfortunately this particular systems is made for motorhomes, which in turn means the hydraulic rams need to be mounted vertically. With the rams mounted vertically, we would loose our approach and departure angles of the van thus limiting accessibility to camping spots. The task in front of us was to create a way to swivel and lock the ram horizontally while travelling and to be able to drop & lock the ram in position when at the desired spot. This mechanism needed to rotate seamlessly and be capable of having a load rating of 3170kg. We called upon our good friends at Reid Engineering to make us some custom bearing swivel brackets with the mentioned capabilities
Special Thanks
Reid Engineering, Titan RV
| Posted in:Recent Projects |

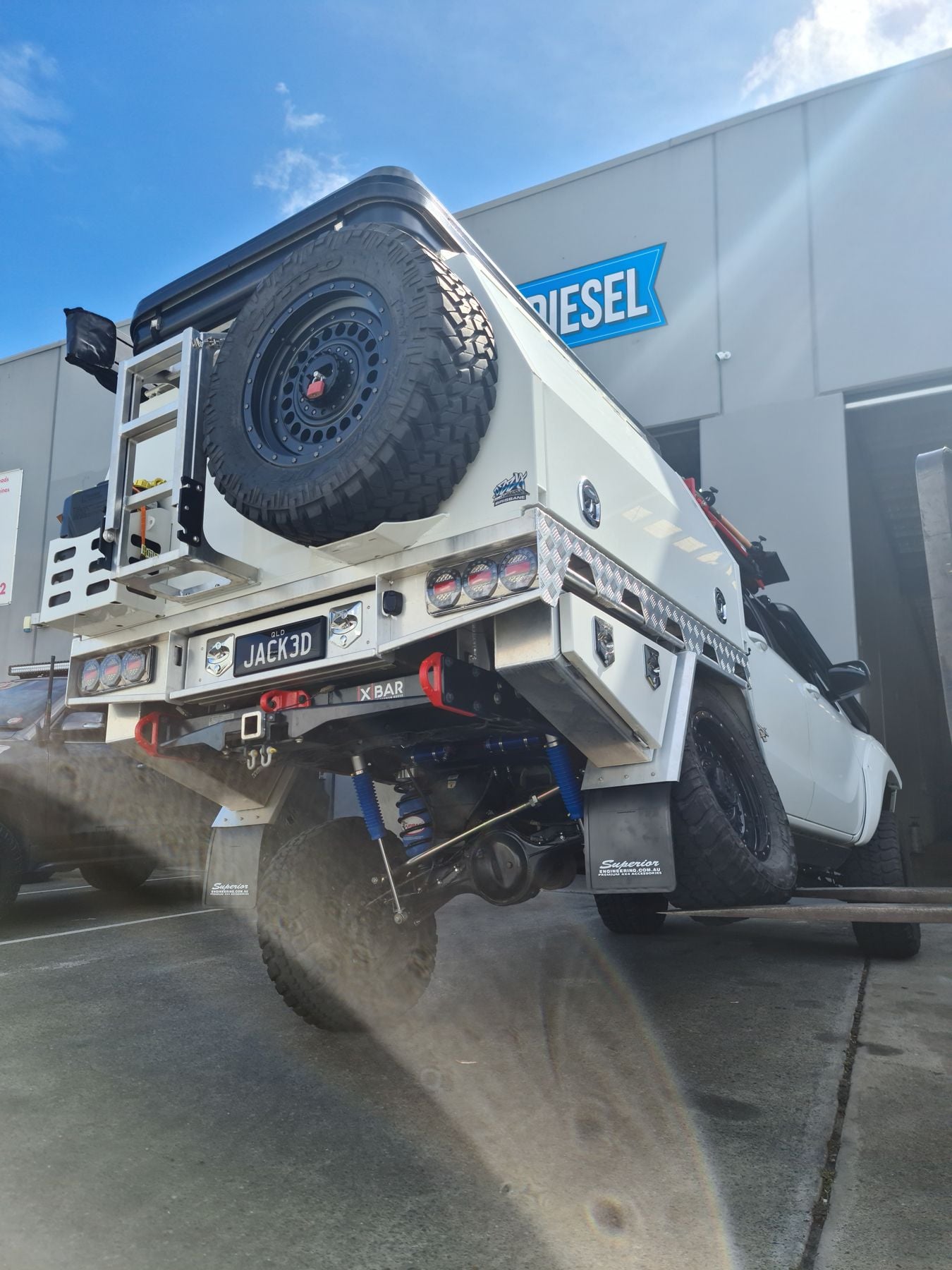

Aarons JACKED BT-50 coil conversion & fit out
 "Aarons JACKED BT-50 coil conversion & fit out")
Vehicle
2012 Mazda BT-50
Goal
Ultimate touring suspension setup
Timeframe
2 months
Modifications
- Superior Engineering 3" remote resovoir lift kit
- Superior Engineering "Weld in" rear coil conversion kit
- Airbag man assisted airbag suspension helper kit
- 4x4 Concepts pillar pod
- Airbag man pressure gauge
- Alpine head unit
- Stinger fascia kit
-
Canopy central locking kit
Description of work completed
Special Thanks
Vearing Performance Engineering, Protrac Suspension
| Posted in:4WD ProjectsRecent Projects |

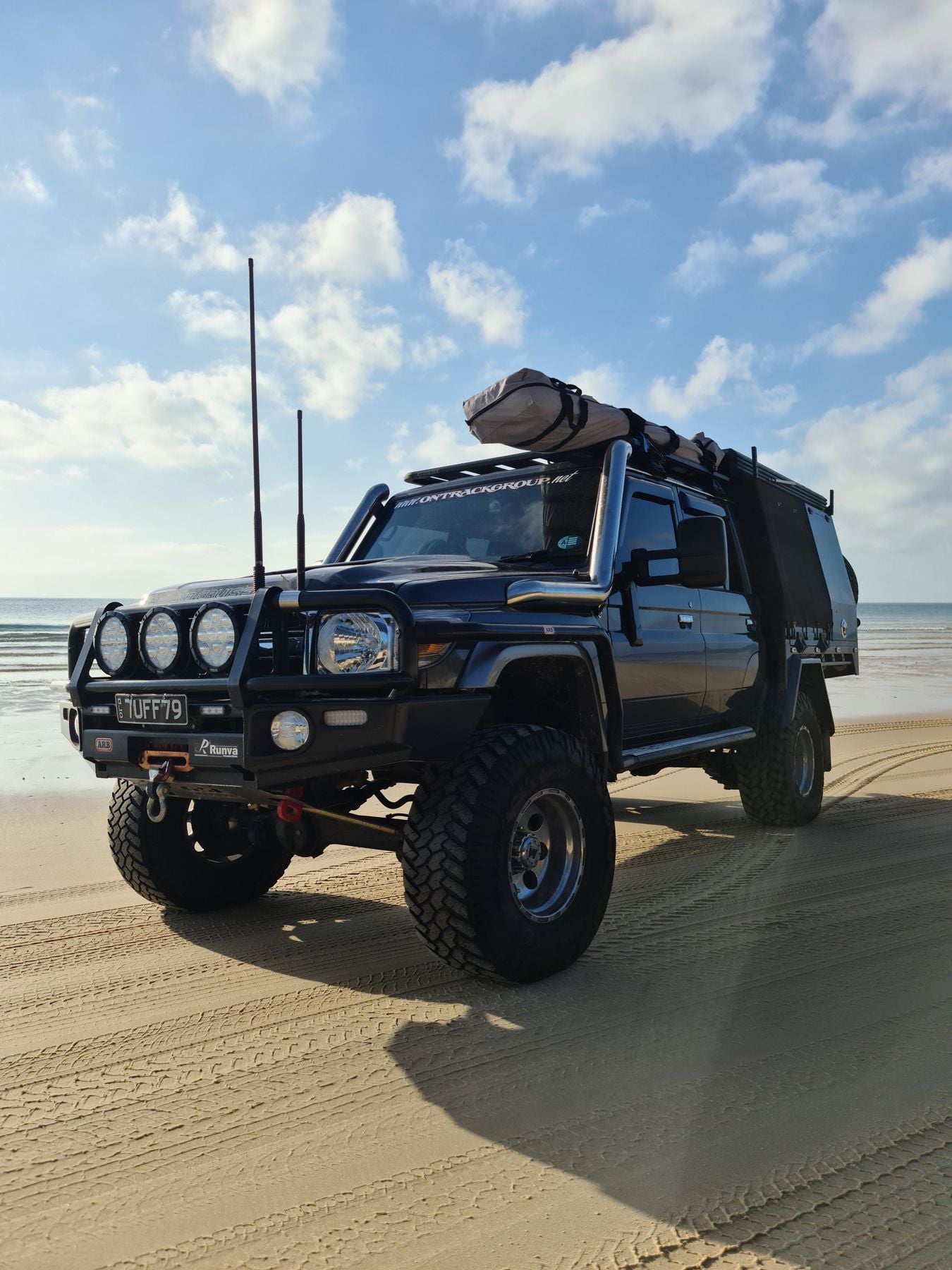

Jamies 7UFF79 Landcruiser Cape York preparation
 "Jamies 7UFF79 Landcruiser Cape York preparation")
Vehicle
2018 Toyota Landcruiser 79 Series
Goal
Cape York Preparation
Time frame
2 months
Modifications
- Enerdrive Adventurer power system w/ simarine monitoring
- 200a/h Enerdrive lithium battery
- ARB twin air compressor
- Canopy lighting
-
Water pump
Description of work completed
| Posted in:4WD ProjectsRecent Projects |

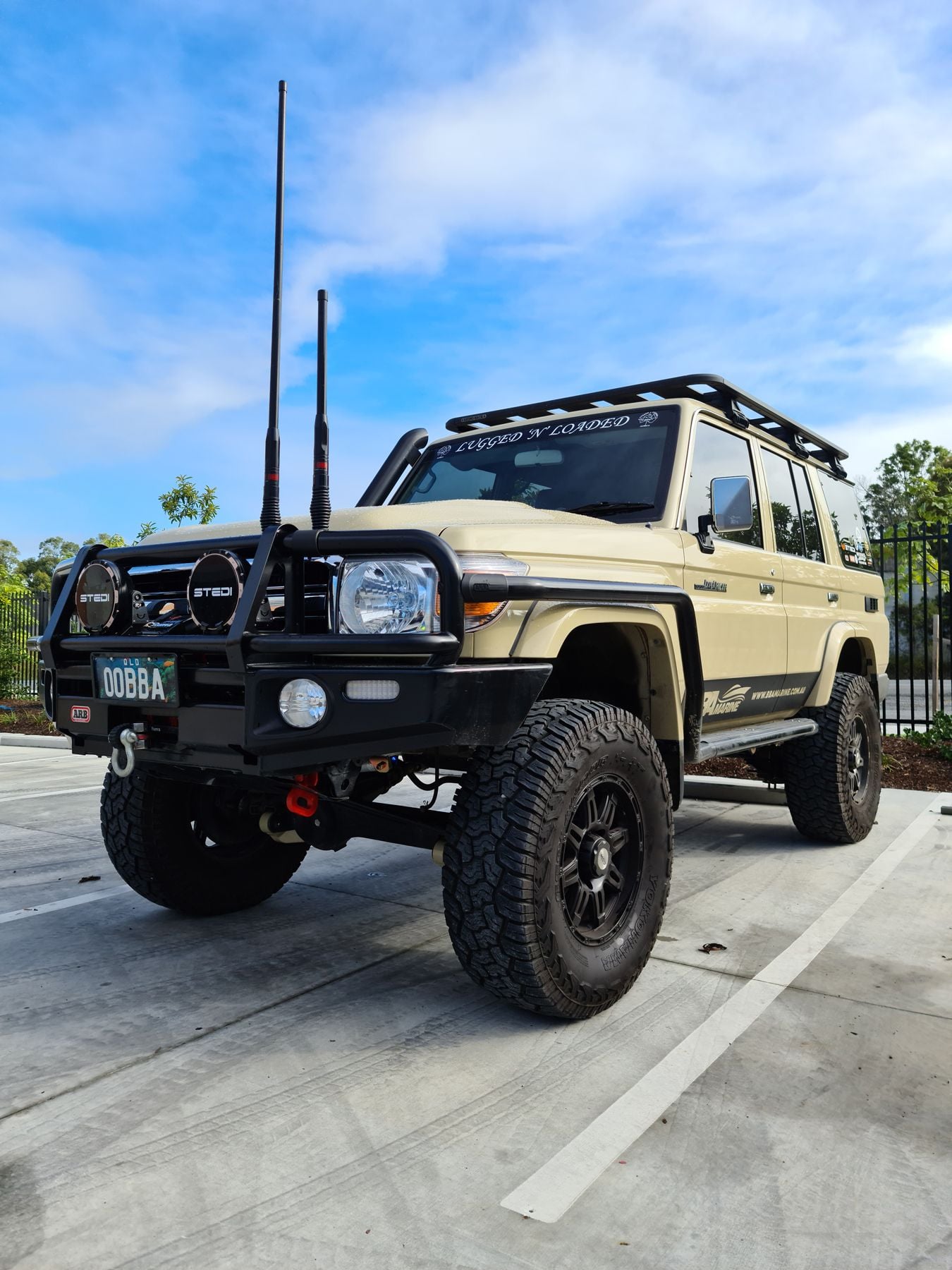

Joshs 00BBA Landcruiser lift and fit out
 "Joshs 00BBA Landcruiser lift and fit out")
Vehicle
2019 Toyota Landcruiser 79 Series
Goal
Timeframe
Modifications
- ARB Bullbar
- ARB side steps
- ARB brush bars
- ARB under body protection
- ARB recovery points
- Runva 13XP winch
- 4x4 Concepts pillar pod
- Redarc boost/EGT gauge
- Cruiser consoles door pods
- Superior Engineering 4" lift kit
- Stedi Type X Pro spot lights
| Posted in:4WD ProjectsRecent Projects |

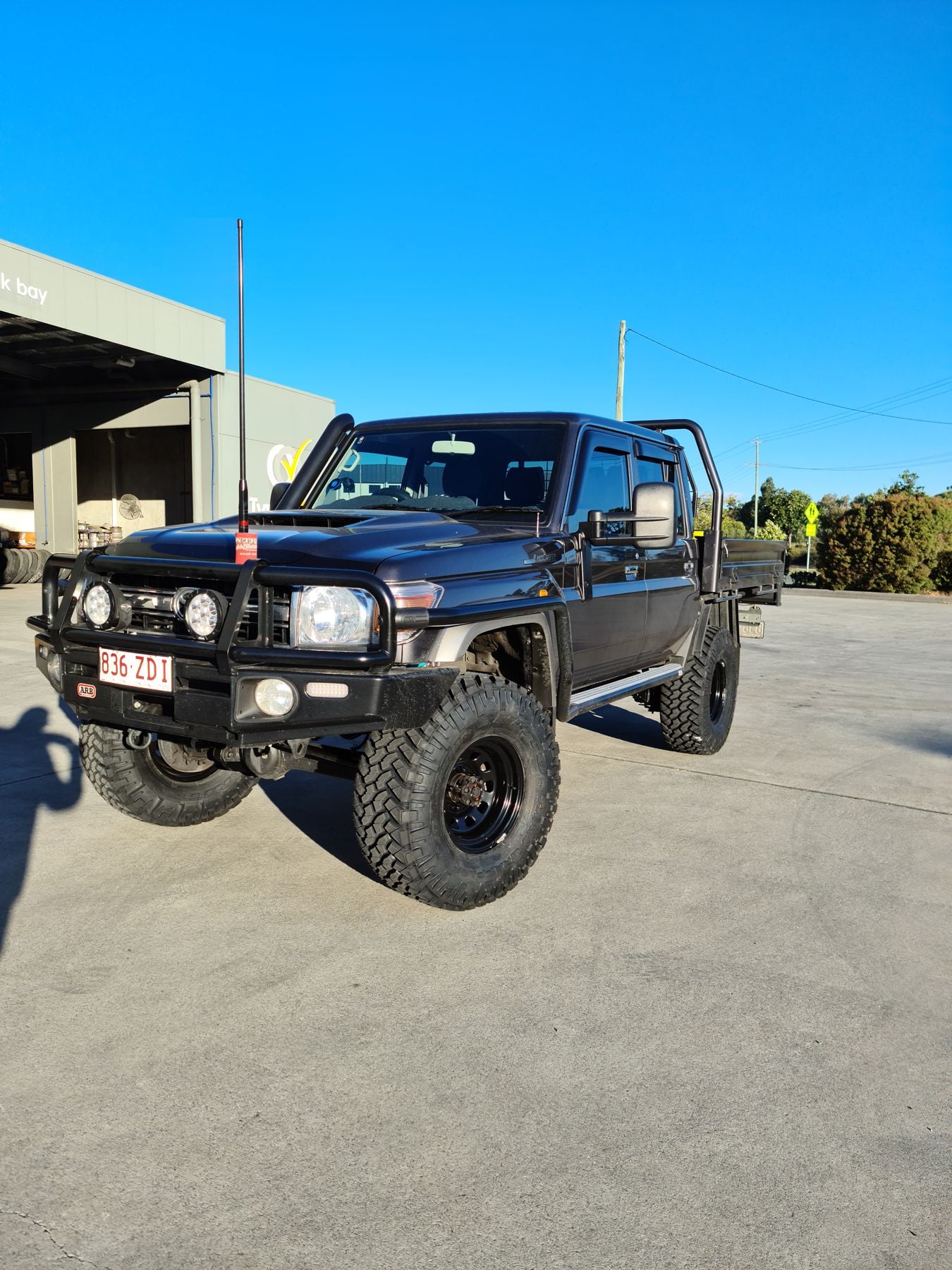

Justins 79 series lift kit
 "Justins 79 series lift kit")
Vehicle
2019 Toyota Landcruiser 79 Series
Goal
More street presence and offroad capability
Timeframe
4 days
Modifications
- Comp Shocks 4" remote res lift kit
- 16" Dynamic D hole wheels
- 35" Nitto Trail Grappler tyres
- Cruiser consoles door pods
- Alpine Type R speakers
- Pioneer amplifier
- Kicker Subwoofer
- Fridge centre console
Description of work completed
| Posted in:4WD ProjectsRecent Projects |
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
